Slitter Rewinder

Slitter Rewinder Machine Manufacturer



Slitter Rewinder machines convert wide master rolls into narrower finished rolls through controlled slitting and rewinding. We provide configurations for film, paper, foil, laminates and other industrial web materials, based on material, roll dimensions, finished widths and winding requirements.
Our manufacturing base covers approximately 5,000 m², with 40+ skilled professionals and 13+ production workstations. We also provide installation guidance, operator training and after-sales technical support. Published company certifications include CE and ISO 9001.





Why Choose Us

In-House Manufacturing

Production covers fabrication, cutting, assembly and machine testing within the manufacturing facility. This keeps the main production stages under direct process management.

Requirement-Based Configuration

Machine selection starts with the material and production requirements. Parent-roll dimensions, finished-roll size, slit width, speed and winding conditions are reviewed before configuration.

Practical Customization

Working width, roll dimensions, core requirements, slitting arrangement and operating functions can be adjusted when standard configurations do not match the process.

Technical Service

Installation guidance, operator training, spare-parts assistance and troubleshooting are available after delivery to support commissioning and continued machine operation.



Features

Web Tension Control

Tension changes as the parent roll unwinds and finished rolls increase in diameter. The control arrangement is selected according to material behavior, roll dimensions and the required winding condition.

Accurate Slitting Arrangement

Razor, shear and score slitting can be selected according to material thickness, structure and edge requirements. Knife positioning is matched to the required finished widths.

Controlled Rewinding

The rewinding section builds separate finished rolls from the slit webs. Shaft and winding arrangements are selected according to core size, roll diameter, material characteristics and required roll hardness.

Web Guiding

Web guiding keeps the running material within the required position through the machine. This supports consistent slit placement and finished-roll alignment, particularly when processing narrower widths.

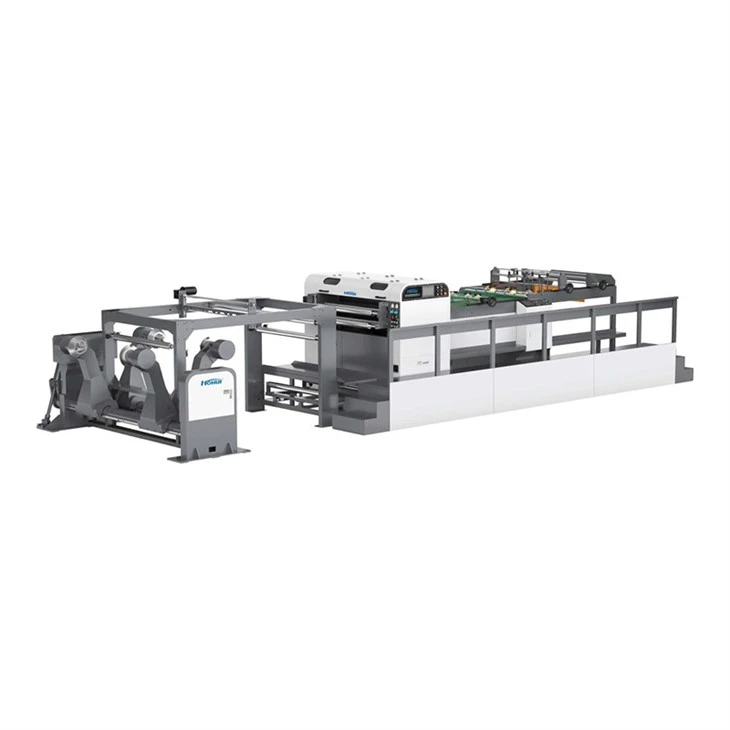

Kraft Paper Slitting And Rewinding Equipment



Applications

Film Processing
BOPP, PET, PE, PP and PVC films can be considered when their thickness, stiffness and winding requirements are compatible with the selected configuration.


Paper Converting
Kraft paper, coated paper, label stock and related paper webs can be converted from wider parent rolls into finished widths for downstream processing.


Foil & Laminates
Aluminum foil and laminated webs require controlled web handling because changes in tension or material stiffness can affect slit quality and finished-roll formation.


Industrial Web Materials
Nonwoven and other technical webs can be processed after their thickness, surface characteristics, stiffness and tension requirements have been defined.



Technical Specifications



Parameter

Published / Configuration Value

Working Width

600–1,400 mm

Maximum Web Speed

50–300 m/min

Paper Processing Range

50–500 gsm

Film Thickness

12–200 μm

Unwind Diameter

600–1,000 mm

Rewind Diameter

300–600 mm

Minimum Slit Width

30 mm

Core Diameter

3" / 6"

Maximum Rewind Weight

Up to 300 kg

Slitting Method

Razor / Shear / Score

Web Tension Range

10–300 N





Custom Slitter Rewinder Solutions

Material Requirements

Material thickness, stiffness, elongation, surface condition and winding behavior affect the selection of knives, tension settings and rewinding arrangement.

Roll Dimensions

Parent-roll width and diameter, finished-roll diameter and core dimensions determine the required unwind, rewind and roll-handling configuration.

Production Requirements

Target slit widths, operating speed, finished-roll condition and production frequency are reviewed when defining the machine configuration.

Operating Functions

Tension control, web guiding, slitting arrangement and other machine functions can be specified according to the confirmed production process.





Manufacturing, Testing & Certification

Factory Manufacturing
Fabrication, cutting, assembly and testing are carried out through dedicated workstations within the manufacturing facility.


Machine Testing
Each machine configuration is assembled and tested before shipment to verify operating functions and the agreed production setup.


Certifications
Published company information identifies CE and ISO 9001 certifications, together with National High-Tech Enterprise recognition.

Kraft Paper Slitting And Rewinding Equipment



Installation, Training & Technical Support





Installation Guidance

Installation guidance is provided for machine setup, connection and preparation before commissioning.



Operator Training

Training covers machine operation, basic setup and routine operating procedures for customer personnel.



Spare Parts & Troubleshooting

After-sales service includes spare-parts assistance and technical troubleshooting related to machine operation and maintenance.





Packaging & Transportation



Machine Protection
Machine structures, components and accessories are protected according to their size, construction and transportation requirements.


Export Packaging
Packaging is arranged around the equipment configuration and expected international transportation conditions.


Shipment Preparation
Equipment, components and accessories are checked and organized before dispatch to support efficient receiving and installation.





FAQ





Q: What materials can a Slitter Rewinder process?

A: Typical applications include film, paper, foil, laminates and nonwoven webs. Final suitability depends on material thickness, stiffness, surface characteristics and winding requirements.

Q: What information is required for machine selection?

A: Provide the material type and thickness, parent-roll width and diameter, finished-roll width and diameter, core size and required production speed. These details determine the basic machine configuration.

Q: How is the slitting method selected?

A: Razor, shear and score slitting are selected according to material structure, thickness and required edge condition. The actual material should be reviewed before final configuration.

Q: Why does tension control matter?

A: Controlled web tension helps maintain material tracking and winding consistency while the roll diameter changes during production. The required tension range depends on the material and finished-roll requirements.

Q: Can the machine be customized?

A: Yes. Working width, roll dimensions, core requirements, slitting arrangement, tension control and other operating functions can be configured according to confirmed production requirements.

Q: What information should be included in an RFQ?

A: Provide the material, thickness, parent-roll dimensions, finished-roll dimensions, core size, target speed and required slit widths. This allows the machine configuration to be reviewed against the actual production process.



modular-1
Request a Slitter Rewinder Solution

Provide your material specifications, parent-roll dimensions, finished-roll requirements, core size, target speed and required slit widths. These details allow the required configuration to be reviewed and a quotation to be prepared.

As one of the most professional slitter rewinder manufacturers in China, we have world-leading production equipment and strong manufacturing capabilities. Please rest assured to buy advanced slitter rewinder made in China here from our factory. We also accept customized orders.
